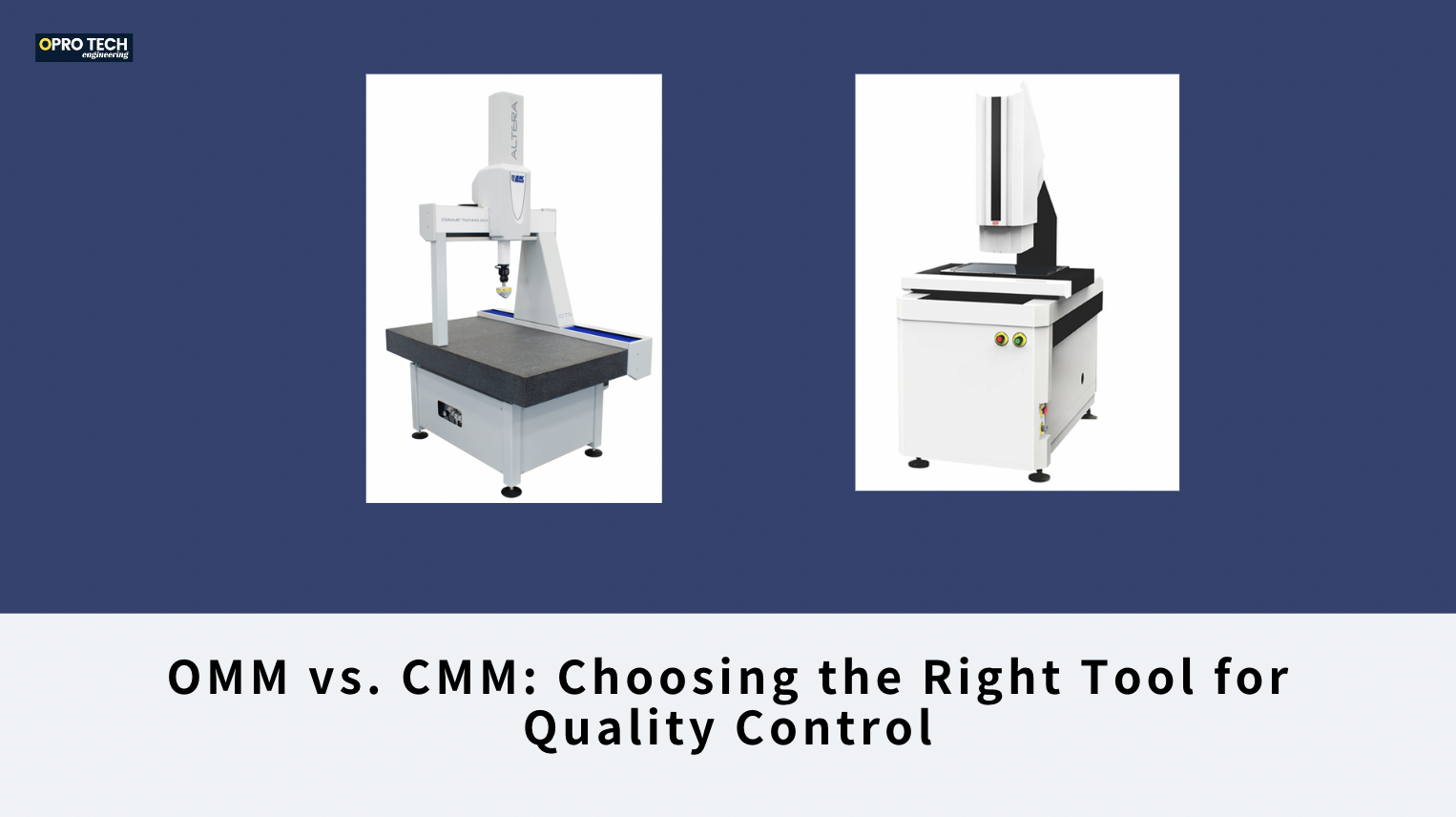

Today, I want to discuss two critical technologies in the field of precision measurement and quality control: Optical Measuring Machines (OMM) and Coordinate Measuring Machines (CMM). Both of these machines play pivotal roles in various industries by ensuring the accuracy and quality of manufactured parts. Understanding the differences and applications of these technologies can significantly impact the efficiency and effectiveness of your quality control processes.

Let's delve into what sets OMM and CMM apart and how each can benefit your specific measurement needs.

Coordinate Measuring Machine (CMM) is a device used in manufacturing and assembly processes to measure the physical geometrical characteristics of an object. It can be manually controlled by an operator or it can be computer-controlled. Measurements are defined by a probe attached to the third moving axis of this machine. Probes can be mechanical, optical, laser, or white light, among others.

Key Features and Benefits of CMM:

1. High Precision Measurement: CMMs provide high-accuracy measurements of the geometrical properties of an object. This is essential for ensuring that parts meet stringent design specifications.
2. Versatility: They can measure a variety of objects, from small parts to large components, and can be used in multiple industries such as automotive, aerospace, and electronics.
3. Automated Measurement: Modern CMMs can be programmed to perform automated measurement sequences, improving efficiency and consistency.
4. Data Collection and Analysis: CMMs collect detailed data that can be analyzed to ensure parts are within tolerance. This data can be used for quality control, reverse engineering, and verification against CAD models.

Types of Probes:

• Touch Trigger Probe: Makes physical contact with the object and registers a point in the coordinate system.
• Scanning Probe: Continuously moves along the surface of the part, collecting a large number of points.
• Optical Probe: Uses light (laser or other forms) to measure the surface of the object without contact.

Components of CMM:

1. Frame: Provides the structural integrity and stability required for precise measurements. Frames can be bridge, gantry, cantilever, or horizontal arm designs.
2. Probe System: The part of the machine that touches or scans the part being measured. It includes the probe head and the stylus.
3. Control System: This includes the hardware and software used to control the movements of the machine and to record measurement data.
4. Measuring Software: Specialized software that helps in planning measurements, executing the measurement process, and analyzing the results.

"OMM" usually stands for "Optical Measuring Machine" or "Optical Measurement Machine." This type of machine uses optical technology, such as lasers, cameras, and sensors, to measure the dimensions, shapes, and other characteristics of objects with high precision. OMMs are often used in quality control processes to ensure that products meet specified standards and tolerances.

Key features and benefits of using an OMM in quality measuring include:

1. High Precision: Optical measuring machines can provide extremely accurate measurements, often down to micrometers or even nanometers.
2. Non-Contact Measurement: Since OMMs use light-based technology, they can measure objects without physically touching them, which is ideal for delicate or small parts.
3. Speed: These machines can quickly measure multiple points or features on an object, making them efficient for use in production environments.
4. Versatility: OMMs can measure a wide range of characteristics, including dimensions, angles, surface roughness, and more.

The primary difference between OMM (Optical Measuring Machine) and CMM (Coordinate Measuring Machine) lies in the technology they use for measurements and their applications. Here’s a detailed comparison:

Optical Measuring Machine (OMM)

1. Technology: Uses optical methods such as lasers, cameras, and sensors to measure objects. This can include vision systems and non-contact laser scanning.
2. Measurement Method: Non-contact; it relies on capturing images or laser reflections to gather measurement data.
3. Applications: Ideal for measuring delicate, small, or flexible parts that might be deformed by touch. Useful for inspecting features like surface roughness, contours, and profiles. Often used in industries like electronics, medical devices, and precision engineering.
4. Advantages: High-speed measurements. Can measure complex geometries and delicate materials. No risk of damaging the parts being measured.

Coordinate Measuring Machine (CMM)

1. Technology: Uses a physical probe (either touch or non-contact) to measure the precise coordinates of points on an object.
2. Measurement Method: Typically involves direct contact with the object using a probe that can be mechanical, optical, laser, or a combination.
3. Applications: Commonly used in automotive, aerospace, and heavy machinery industries for measuring the dimensions of large and rigid parts. Excellent for inspecting geometric features, such as holes, slots, and edges.
4. Advantages: Highly accurate and precise measurements. Can measure internal and external dimensions, complex geometries, and 3D forms. Suitable for verifying the dimensional accuracy of machined components.

Summary of Differences

• Measurement Method: OMM uses non-contact optical methods, while CMM typically uses a touch probe.
• Suitability: OMM is better for delicate and small parts, whereas CMM is ideal for larger, rigid components requiring high precision.
• Applications: OMM is more suited to electronics and precision parts, while CMM is used in heavy industry and for more complex geometrical inspections.

Both machines are critical in quality control and precision manufacturing, but the choice between them depends on the specific measurement requirements of the application.

In conclusion, both Optical Measuring Machines (OMM) and Coordinate Measuring Machines (CMM) are indispensable tools in the realm of precision measurement and quality control. While OMMs offer the advantage of high-speed, non-contact measurements ideal for delicate and complex parts, CMMs provide unparalleled accuracy and versatility for inspecting a wide range of geometrical features on larger, more rigid components.

Understanding the strengths and applications of each technology allows industries to choose the right tool for their specific needs, ensuring optimal quality and efficiency in their manufacturing processes. As we continue to advance in engineering and technology, staying informed about these measurement solutions will enable us to maintain high standards and meet the ever-evolving demands of the market.
