Pilot molds play a critical role in the product development cycle, bridging the gap between prototyping and full-scale production. These molds, often used for small batch runs, allow manufacturers to test and refine designs before committing to expensive, high-volume tooling.

By providing the ability to validate part geometry, functionality, and material performance, pilot molds help identify potential issues early, saving time and costs in the long run. In this article, we will explore the importance of pilot molds, the various techniques used to create them, and how modern technologies such as 3D printing and CNC machining have revolutionized this process.

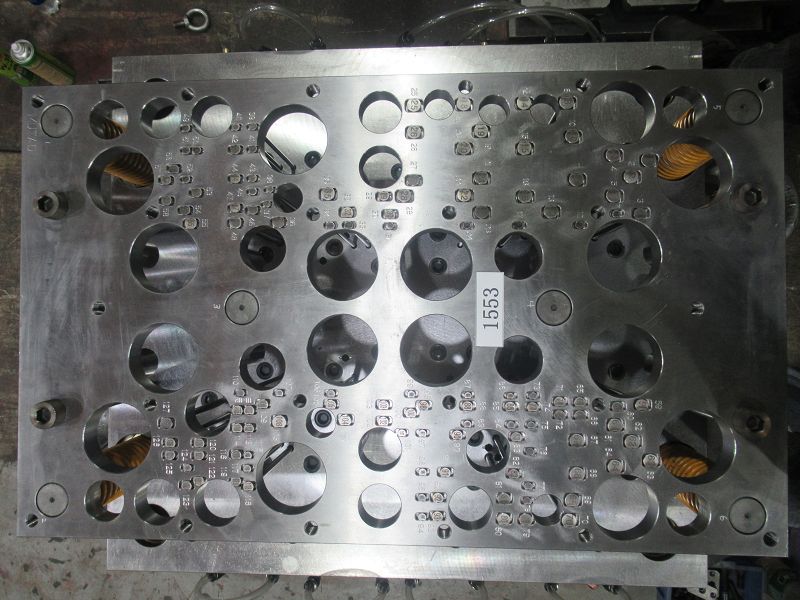

A pilot mold (also known as a prototype mold or test mold) is a preliminary or smaller-scale mold used to test and validate the design and functionality of a product before full-scale production begins. Pilot molds are typically used in injection molding processes and serve several purposes:

1.  Design Validation: They allow manufacturers to test and refine the design of the part, ensuring it meets all functional and aesthetic requirements before mass production.

2.  Material Testing: Different materials can be tested in the pilot mold to see how they behave in the molding process and how the final part performs.

3.  Process Optimization: They help identify potential issues in the injection molding process, such as cooling times, flow patterns, and gate locations, which can then be optimized for efficiency and quality.

4.  Cost Efficiency: By producing a limited number of parts through a pilot mold, companies can avoid the higher costs associated with mass production molds until the design and process are perfected.

In short, pilot molds are an essential step in ensuring that the final product will be manufactured efficiently and to the desired specifications before investing in a production mold, which is typically more expensive and larger.

When it comes to creating pilot molds, several new technologies and methods have emerged that significantly improve the process in terms of cost, speed, and flexibility. Here's an overview of modern technologies and methods used for pilot molds:

New Technologies in Making Pilot Molds

1. 3D Printing / Additive Manufacturing
• Technology: 3D printing allows for the creation of mold components using various materials (resin, metal, etc.). Technologies such as Stereolithography (SLA), Selective Laser Sintering (SLS), and Direct Metal Laser Sintering (DMLS) are particularly useful.
• Benefits: Fast, cost-effective, and flexible, allowing rapid iterations in design and tooling.
• Applications: Ideal for creating pilot molds quickly and affordably, especially for short-run production and testing of complex geometries.
2. Conformal Cooling Channels
• Technology: Using 3D printing, conformal cooling channels can be incorporated into mold designs. These channels follow the shape of the part, improving cooling efficiency and reducing cycle times.
• Benefits: Faster cooling, less warping, and more consistent part quality.
• Applications: Especially useful in industries where reducing cycle time and improving part precision is critical.
3. Hybrid Manufacturing
• Technology: Combining traditional machining (CNC milling, for example) with 3D printing. Metal components of the mold are 3D printed, while finer details and surfaces are finished using CNC.
• Benefits: High precision and strength, along with cost savings.
• Applications: Effective for producing durable, complex molds while keeping production costs reasonable.
4. Rapid Tooling
• Technology: This is a method of creating molds quickly using materials like aluminum or soft steels, instead of the more expensive and time-consuming hardened steel typically used in production molds.
• Benefits: Shorter lead times, reduced costs, and the ability to test designs early in the development cycle.
• Applications: Suitable for small-batch production, prototypes, and pilot runs.
5. Laser Surface Texturing
• Technology: Lasers are used to apply precise textures to mold surfaces, providing a wide range of surface finishes without the need for additional processing steps.
• Benefits: High precision, repeatability, and flexibility in surface finishes.
• Applications: Used for aesthetic and functional surface textures, reducing the need for post-processing on molded parts.
6.


Methods to Make Pilot Molds

There are several methods to make pilot molds, depending on the desired outcome, budget, and time constraints:

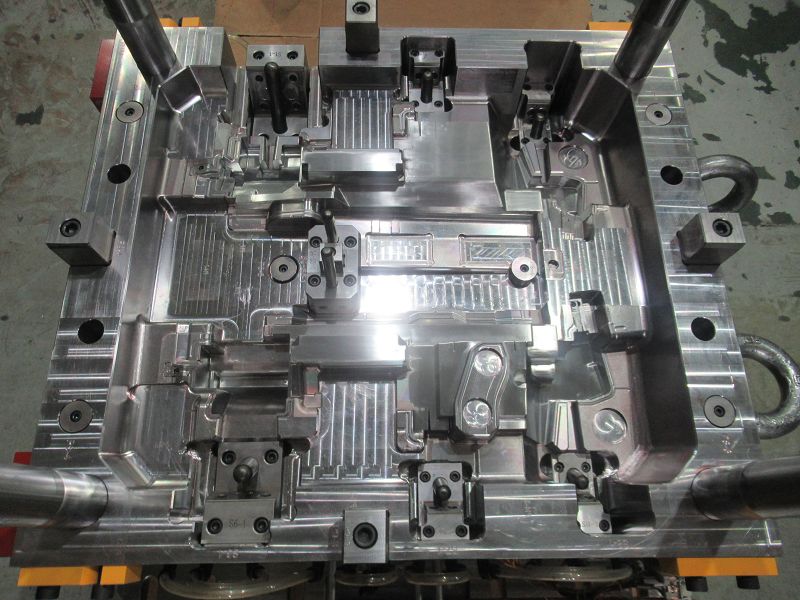

1. Soft Tooling (Aluminum or Soft Steel Molds)
• Method: Soft materials like aluminum or P20 steel are used to create molds for short-run production or testing.
• Advantages: Lower cost and faster lead time compared to hard steel molds.
• Disadvantages: Limited durability, making them unsuitable for long production runs.
• Use Case: Ideal for short production runs, material testing, and initial prototype validation.
2. 3D Printed Molds
• Method: Additive manufacturing techniques are used to directly 3D print the mold using high-performance polymers or metal.
• Advantages: Rapid turnaround time, cost-effective, and complex geometries possible.
• Disadvantages: Limited to low production quantities and may have lower durability compared to traditional molds.
• Use Case: Fast iterations and complex designs, ideal for early-stage prototyping.

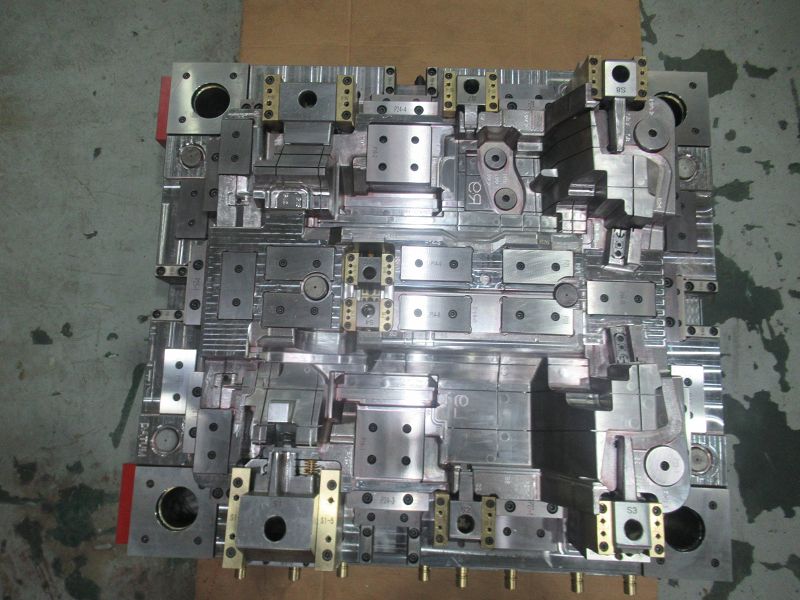

3. Prototype Molds Using CNC Machining
• Method: CNC milling is used to machine molds from aluminum, steel, or other metals.
• Advantages: High precision and flexibility in mold design.
• Disadvantages: More expensive and time-consuming compared to soft tooling or 3D printing.
• Use Case: Suitable for pilot runs that require a high level of precision and durability.
4. Silicone or Urethane Molds (Vacuum Casting)
• Method: A master model (often 3D printed) is used to create a silicone or urethane mold.
• Advantages: Low cost, quick turnaround, and the ability to produce small runs of parts.
• Disadvantages: Limited to small batches and low durability for long production runs.
• Use Case: Useful for short-run pilot production of plastic parts, especially for prototyping consumer products.

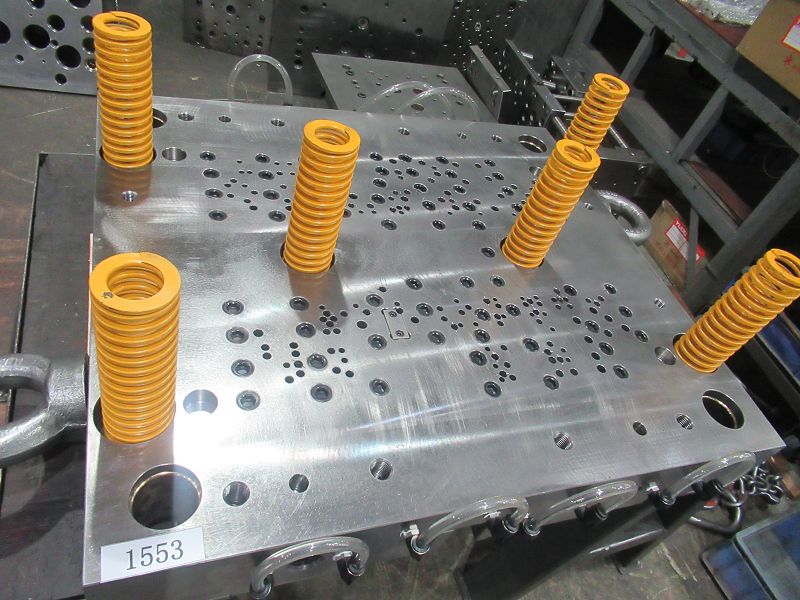

5. Bridge Tooling
• Method: This involves creating a temporary mold that serves as a "bridge" between prototype and full production. It’s typically made from less durable materials than production molds.
• Advantages: Allows for faster entry into market while production tooling is being completed.
• Disadvantages: Less durable than production molds, and not suited for large-scale runs.
• Use Case: For companies that want to start production early while their full-scale production tools are still being made.
6. Epoxy or Composite Molds
• Method: These molds are made from epoxy resin or composite materials and can be cast from a master pattern.
• Advantages: Low cost and relatively fast to produce.
• Disadvantages: Not suitable for high-temperature applications or long production runs.
• Use Case: Suitable for low-temperature plastics and small-scale prototyping.
7.


Summary of Methods

1. Soft Tooling (Aluminum/Soft Steel)
2. 3D Printed Molds
3. CNC Machined Molds
4. Silicone or Urethane Molds (Vacuum Casting)
5. Bridge Tooling
6. Epoxy or Composite Molds

Choosing the right technology and method for creating pilot molds depends on factors such as project requirements, budget, time, and complexity. Technologies like 3D printing, hybrid manufacturing, and rapid tooling have revolutionized the process, allowing for quicker and more flexible prototyping.

In conclusion, pilot molds are an indispensable tool in today’s manufacturing landscape, offering flexibility, cost-effectiveness, and speed. As new technologies like 3D printing, conformal cooling channels, and advanced CNC machining continue to evolve, the process of creating pilot molds has become faster and more precise. These advancements not only shorten lead times but also ensure higher-quality products with fewer production risks. Whether for product validation, material testing, or process optimization, pilot molds remain a key component in achieving successful production outcomes.
