Thermoplastic Polyurethane (TPU) has become a go-to material in industries requiring both flexibility and durability. One of its most popular variants, TPU 95, stands out due to its exceptional balance between elasticity and strength, making it ideal for various sealing applications such as O-rings. TPU 95 O-rings are widely used in environments where resistance to abrasion, chemicals, and wear is crucial. In this article, we will dive into the properties that make TPU 95 O-rings suitable for demanding industrial applications and explore why they are often preferred over other elastomers.

TPU (Thermoplastic Polyurethane) is a versatile and flexible material commonly used in a variety of applications, especially in the manufacturing of products requiring durability, flexibility, and resistance to abrasions, oils, and chemicals. TPU is a type of thermoplastic elastomer, which means it combines the characteristics of rubber and plastic, offering excellent flexibility at low temperatures and good resistance to wear.

Key Properties of TPU:

• Elasticity: TPU has rubber-like flexibility and is often used in applications where a soft, elastic material is required.
• Durability: It has high abrasion resistance and can withstand harsh conditions.
• Chemical Resistance: TPU can resist oils, greases, and various chemicals, making it suitable for demanding environments.
• Transparency: Some grades of TPU can be optically clear, making them ideal for products like phone cases or wearables.
• Biocompatibility: Certain grades are used in medical applications due to their safety in contact with human skin.

Different Grades of TPU:

1. Soft TPU (Low Hardness, Shore A): These grades have a softer feel, often used for flexible parts such as wearable devices, grips, seals, or tubing.
2. Hard TPU (High Hardness, Shore D): These grades are more rigid and durable, used in applications like casings for electronics, automotive components, or parts requiring toughness.
3. Conductive TPU: Modified to provide electrical conductivity, this grade is used in applications like wearable electronics or anti-static devices.
4. Flame-Retardant TPU: This grade is designed for use in environments where fire safety is a concern, such as in cables, electronics, or automotive parts.
5. Medical TPU: These biocompatible grades are used for medical devices, wearables, and other healthcare applications where contact with the body is required.

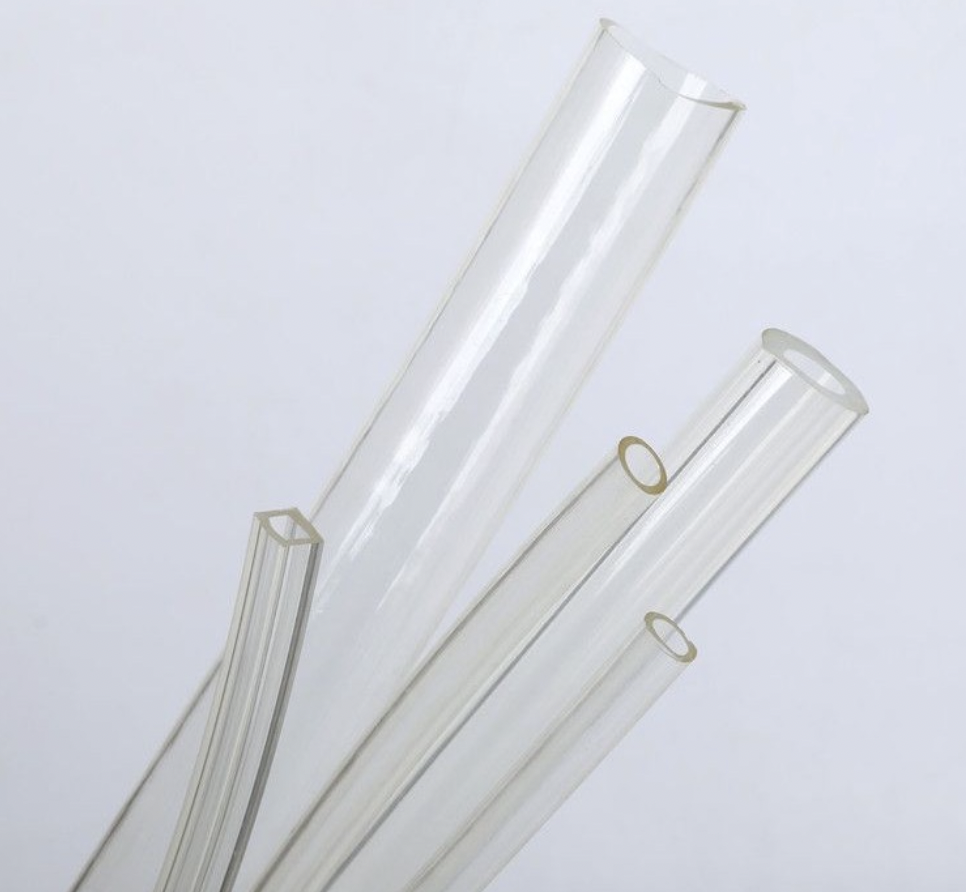

6. High-Transparency TPU: This grade offers clarity and is used for applications like phone cases, lenses, or medical devices where visibility is important.
7. UV-Resistant TPU: For outdoor applications like sporting goods, where prolonged exposure to sunlight could cause degradation.

TPU can also be customized by adjusting its hardness (Shore scale) and other properties, depending on the specific needs of the project.

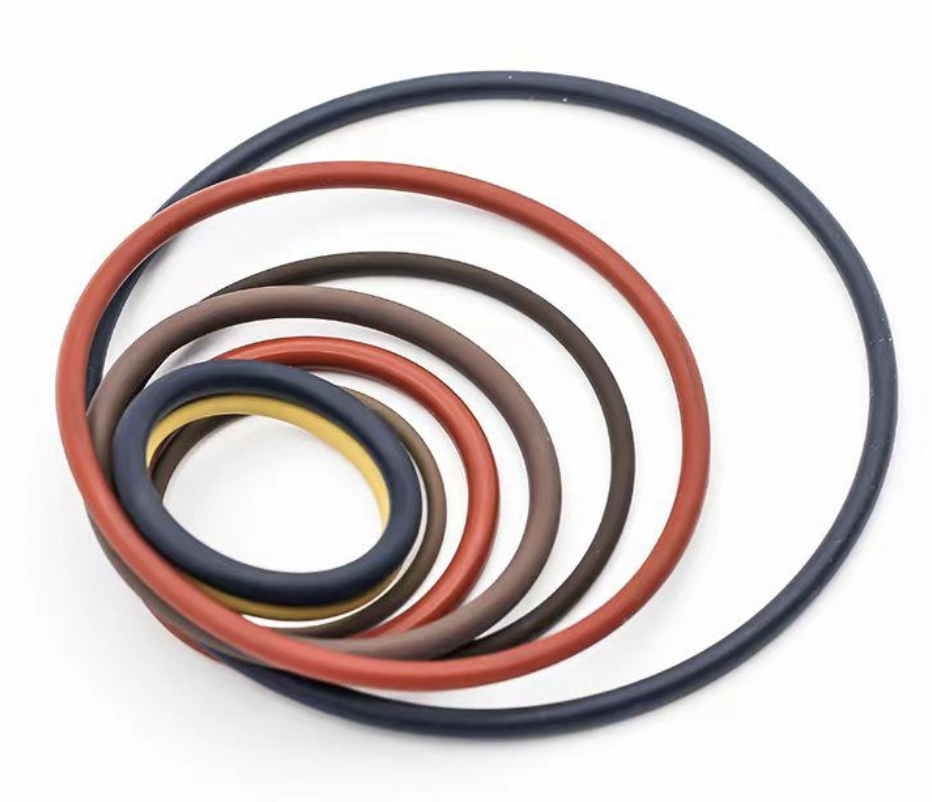

For a 100mm O-ring made from TPU 95 (95 Shore A hardness),for example,  it's important to address both the properties of the material and its performance in the specific application.

TPU 95 Characteristics

TPU 95 is a medium-hardness thermoplastic elastomer, balancing flexibility and toughness. Key properties include:

• Abrasion Resistance: TPU 95 has excellent wear and abrasion resistance, making it ideal for applications involving friction or contact with moving parts (like gears).
• Elasticity and Flexibility: It maintains flexibility even at low temperatures, which is useful for ensuring a snug fit around metal components.
• Tear Strength: TPU 95 is resistant to tears and punctures, so it can handle the mechanical stresses exerted by the metal gears without easily getting damaged.
• Chemical Resistance: TPU 95 is resistant to oils, greases, and many industrial chemicals, which is beneficial if the metal wheel operates in environments where lubricants or harsh chemicals are present.
• Impact Resistance: The material can absorb impacts or shocks that may occur in mechanical operations, reducing the chance of damage to both the O-ring and the surrounding components.

Concerns Specific to Gears

Since the O-ring will be used in conjunction maybe with a metal wheel that has gears, here are a few considerations:

• Friction and Wear: Even though TPU 95 is highly abrasion-resistant, constant contact with metal gears could wear down the O-ring over time. Ensuring the correct fit and proper lubrication will help extend the lifespan of the O-ring.
• Compression Set: TPU, especially at Shore 95A, tends to have good resistance to compression set, meaning it can maintain its shape after being compressed by the gears and metal wheel. This is important for maintaining a proper seal or functional engagement in mechanical systems.
• Temperature Performance: TPU can typically handle moderate temperatures (ranging from -40°C to 80°C), but if the operating environment has extreme heat generated by the gears, the material might degrade faster. In such cases, you might need to confirm if the TPU 95 you’re using has any additives for heat resistance.

Additional Suggestions:

1. Surface Lubrication: To reduce wear and tear between the O-ring and the metal gears, ensure adequate lubrication is used to minimize friction.
2. Periodic Inspection: Regular checks on the condition of the O-ring are advisable to monitor for early signs of wear, especially in high-friction areas.
3. Material Alternatives: If the client remains concerned about the performance of TPU 95, you could suggest exploring harder TPU grades or other elastomers, such as NBR (Nitrile Butadiene Rubber) or FKM (Fluoroelastomer), depending on specific needs like higher heat resistance or chemical resistance.

Conclusion:

TPU 95 should generally perform well in this type of application due to its durability, flexibility, and wear resistance. However, it’s important to ensure proper lubrication and possibly consider periodic inspections to ensure long-term reliability. If friction or heat are significant concerns, testing the O-ring in the actual working environment would help evaluate performance.

In conclusion, TPU 95 O-rings offer a unique combination of strength, flexibility, and resistance to harsh environments, making them a reliable choice for industries ranging from automotive to electronics. Whether it’s the material’s durability or its ability to maintain a tight seal in challenging conditions, TPU 95 provides long-lasting performance. For manufacturers looking to balance cost-effectiveness with superior material properties, TPU 95 O-rings continue to prove their value. As demand for versatile and reliable materials increases, TPU 95 remains a critical player in the future of industrial sealing solutions.
